Core Functionality Overview
Meticulously engineered for the efficient purification of PMMA pyrolysis liquid, this batch-mode vacuum rectification column for MMA incorporates cutting-edge vacuum batch distillation technology. It is capable of consistently producing MMA monomer solutions with a purity of 98% or higher, completing each batch processing cycle in no more than 11 hours. The system features dual operational modes - manual and PLC-based automated control - offering exceptional flexibility to effortlessly accommodate diverse production requirements. Furthermore, it enables rapid startup and shutdown, making it perfectly suited for environments involving frequent production scheduling and adjustments.
Operating Steps
1. Feeding and Vacuum Pre-startup Phase
Utilizing a high-efficiency liquid-ring vacuum pump, crude MMA monomer is precisely drawn into the distillation kettle, and the system pressure is rapidly reduced to a vacuum state of 10–50 kPa. The distillation kettle is preheated to a set temperature of 60–80°C (20–40°C lower than the boiling point at atmospheric pressure); simultaneously, the overhead condenser is activated in advance for pre-cooling, maintaining a temperature gradient of 50–70°C. The reflux ratio is subject to intelligent control.
During the initial phase, a total reflux operation is implemented to ensure the thorough separation of components within the column.
2. Once the purity of the overhead condensate reaches 90%, the collection procedure for qualified MMA monomer is initiated, and the product is transferred to the refined monomer storage tank.
3. An integrated, high-precision gas chromatograph monitors the composition within the separator in real time; should the purity be detected as falling below the required standard, the condensate reflux mechanism is immediately triggered.
4. Residue Discharge and System Reset
When the temperature at the column bottom is detected to exceed 85°C - indicating a significant increase in the concentration of heavy components - the system automatically closes the product discharge valve. Nitrogen gas is then used to pressurize the system and safely discharge the remaining residue into a waste liquid tank, thereby effectively preventing the polymerization of residual MMA.
5. Upon the completion of a single batch processing cycle, the system automatically executes a depressurization procedure to restore the pressure to atmospheric levels, ensuring full readiness for the processing of the next batch.
Description of Advantages
Exceptional Start-up and Shutdown Convenience
● One-Touch Start: Incorporating an efficient vacuum pre-evacuation function, the system requires only 15 minutes to rapidly reach the target vacuum level (10–50 kPa). The heating module utilizes an advanced PID temperature control algorithm, boosting the heating rate by 20% compared to traditional methods.
● Intelligent Shutdown Sequence: Upon completion of a batch run, the PLC automatically executes a series of shutdown procedures - including pressure relief, residual liquid drainage, and condenser emptying - seamlessly supporting efficient, continuous multi-batch production.

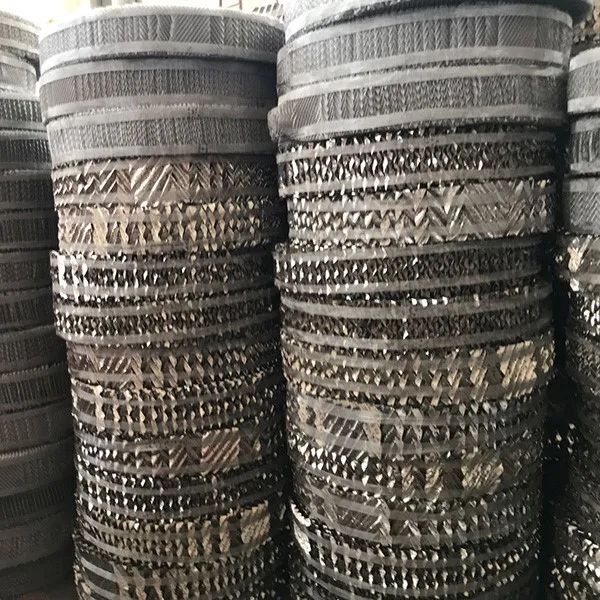

● Low-Maintenance Design: After shutdown, there is no need for manual cleaning of the packing material; the system transitions directly into standby mode, thereby significantly reducing maintenance costs.
Significant Advantages of Vacuum Operation
● Energy-Efficient and Highly Effective: Under vacuum conditions, the boiling point of MMA is significantly lowered to 60–80°C. Heating energy consumption is reduced by 30% compared to operation at atmospheric pressure; for an annual processing volume of 10,000 tons of cracking liquid, this translates to steam cost savings exceeding 1.2 million RMB.
● Safe and Secure: A comprehensive negative-pressure protection mechanism is implemented throughout the entire process (with pressure fluctuations controlled within ±1 kPa), effectively eliminating the risk of high-temperature auto-polymerization of MMA.
● Efficient Scheduling: Characterized by short start-up and shut-down times and simple operation, the system allows for an average of two processing batches per day. Equipment utilization is boosted by 40% compared to traditional methods, resulting in a significant enhancement of production efficiency.
Intelligent Control and High Flexibility
● Seamless Dual-Mode Operation: In Manual Mode, operators can manually adjust the vacuum level and reflux ratio; in PLC Automatic Mode, the system utilizes a preset pressure-temperature profile to dynamically compensate for fluctuations in the feed stream, ensuring stable and reliable product purity.
● Flexible Small-Batch Processing: With a batch capacity ranging from 15 to 25 tons, the system is perfectly suited for a diverse range of applications - including PMMA waste recycling, laboratory R&D, and small-to-medium scale production.
Substantial Reduction in Maintenance Costs
The equipment cleaning cycle has been extended to 12 months, reducing annual maintenance costs by 15% compared to traditional equipment, thereby significantly enhancing both operational efficiency and economic benefits.
Applicable Scenarios
- Applications requiring frequent start-ups, shutdowns, and flexible scheduling - such as laboratory R&D, small-to-medium-scale PMMA production facilities, and PMMA waste recycling operations.
- Batch production environments that demand rapid responsiveness to changes in orders or process parameters.
- Distinguished by its exceptional design for ease of start-up and shutdown, this product has emerged as a highly efficient and reliable choice within the field of PMMA purification, delivering unprecedented convenience and operational benefits to users.
